1、容量范围：≤28Ah(C20,25℃)
2、额定电压：6V/12V/24V
3、浮充设计寿命：6年-8年
4、满足IEC、JIS、BS、VDS及 GB/T等检测标准
5、通过UL、CE、ISO9001、ISO14001及ISO45001等认证
6、采用纯度高达99.994%的1#电解铅
7、采用特殊专利合金配方，板栅耐腐蚀性能更强
8、采用高温高湿固化工艺，寿命、容量及批次一致性有保障
9、挂耳工艺设计，极板固化干燥的一致性高
10、采用隐藏式安全阀设计，有效避免安全阀堵塞
| 电池型号 | 额定电压（V） | 额定容量C20（Ah） | 电池尺寸 | 端子选项 | 端子位置 | |||
| 长/mm | 宽/mm | 高/mm | 总高/mm | |||||
| RT613 | 6 | 1.3 | 97 | 24 | 52 | 58 | F1 | C |
| RT628 | 6 | 2.8 | 66.5 | 34 | 97 | 103 | F1 | A |
| RT632 | 6 | 3.2 | 134 | 34 | 60 | 66 | F1 | C |
| RT640S | 6 | 4 | 194 | 25 | 62 | 62 | T1 | N |
| RT640 | 6 | 4 | 70 | 47 | 99 | 105 | F1 | A |

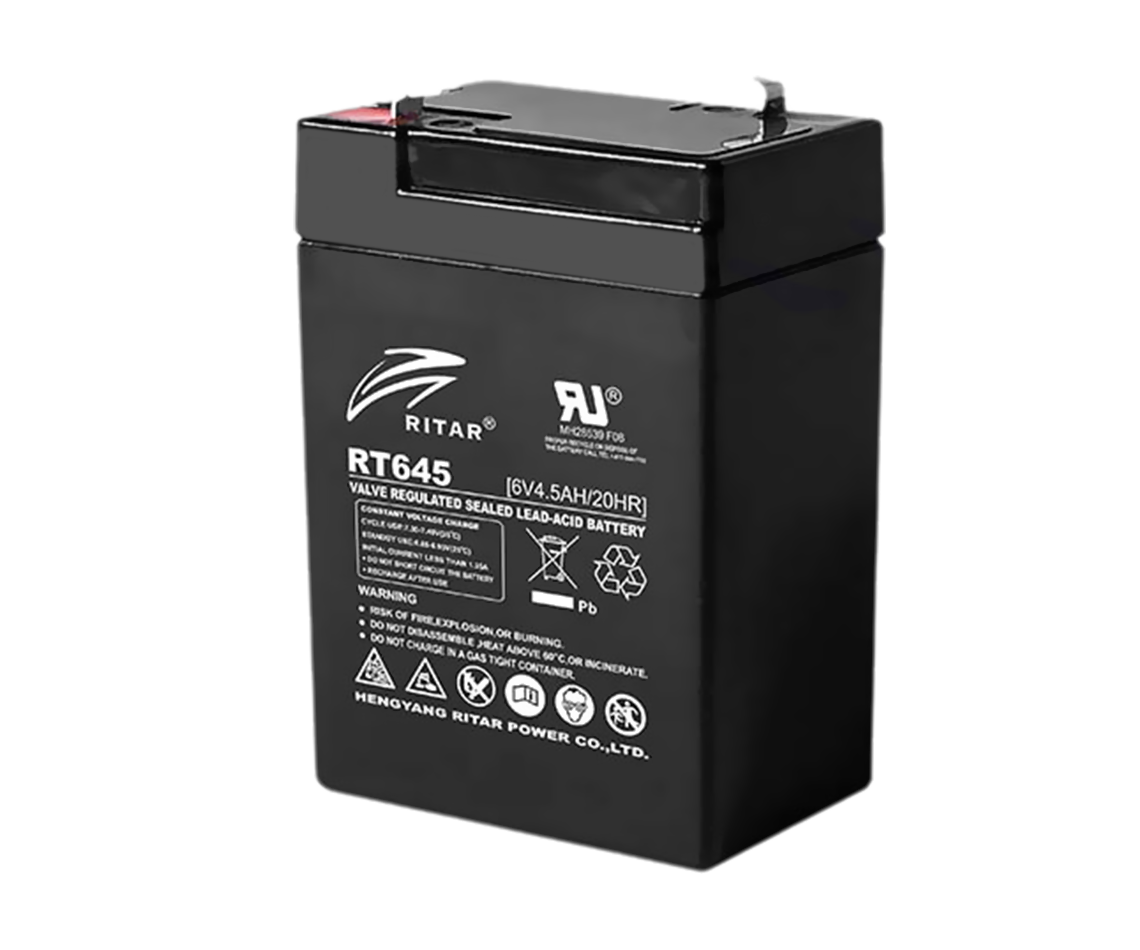

| RT645 | 6 | 4.5 | 70 | 47 | 99 | 105 | F1 | A |
| RT650 | 6 | 5 | 70 | 47 | 99 | 105 | F1/F2 | A |
| RT670 | 6 | 7 | 151 | 34 | 94 | 100 | F1/F2 | C |
| RT680 | 6 | 8 | 151 | 34 | 94 | 100 | F1/F2 | C |
| RT6100 | 6 | 10 | 150 | 50 | 93 | 99 | F1/F2 | C |
| RT6120 | 6 | 12 | 150 | 50 | 93 | 99 | F1/F2 | C |
| RT1213 | 12 | 1.3 | 98 | 43.5 | 53 | 59 | F1 | E |
| RT1223 | 12 | 2.3 | 177 | 35 | 62 | 68 | F1 | C |
| RT1232 | 12 | 3.2 | 134 | 67 | 60 | 66 | F1 | E |
| RT1240 | 12 | 4 | 90 | 70 | 101 | 107 | F1/F2 | C |
| RT1245 | 12 | 4.5 | 90 | 70 | 101 | 107 | F1/F2 | C |
| RT1245S | 12 | 4.5 | 195 | 47 | 71 | 76 | F1/F2 | C |
| RT1245U | 12 | 4.5 | 151 | 65 | 94 | 100 | F1/F2 | C |
| RT1250 | 12 | 5 | 90 | 70 | 101 | 107 | F1/F2 | C |
| RT1250B | 12 | 5 | 151 | 50 | 95 | 101 | F1/F2 | C |

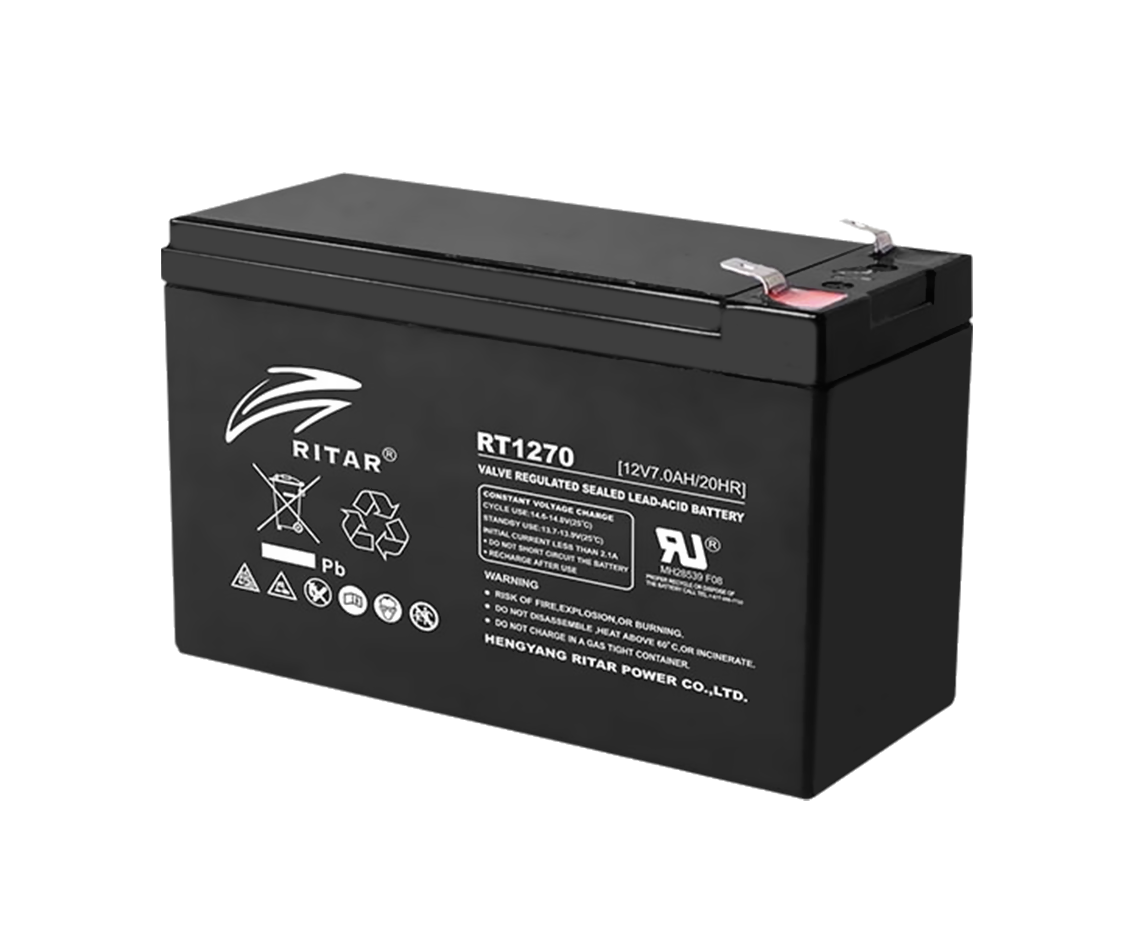

| RT1270 | 12 | 7 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1270A | 12 | 7 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1270L | 12 | 7 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1270(VDS) | 12 | 7 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1280 | 12 | 8 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1280L | 12 | 8 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1290EP | 12 | 9 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT1290 | 12 | 9 | 151 | 65 | 94 | 100 | F1/F2 | F |
| RT12100 | 12 | 10 | 151 | 98 | 95 | 101 | F1/F2 | F |
| RT12120 | 12 | 12 | 151 | 98 | 95 | 101 | F1/F2 | F |
| RT12120A | 12 | 12 | 151 | 98 | 95 | 101 | F1/F2 | F |

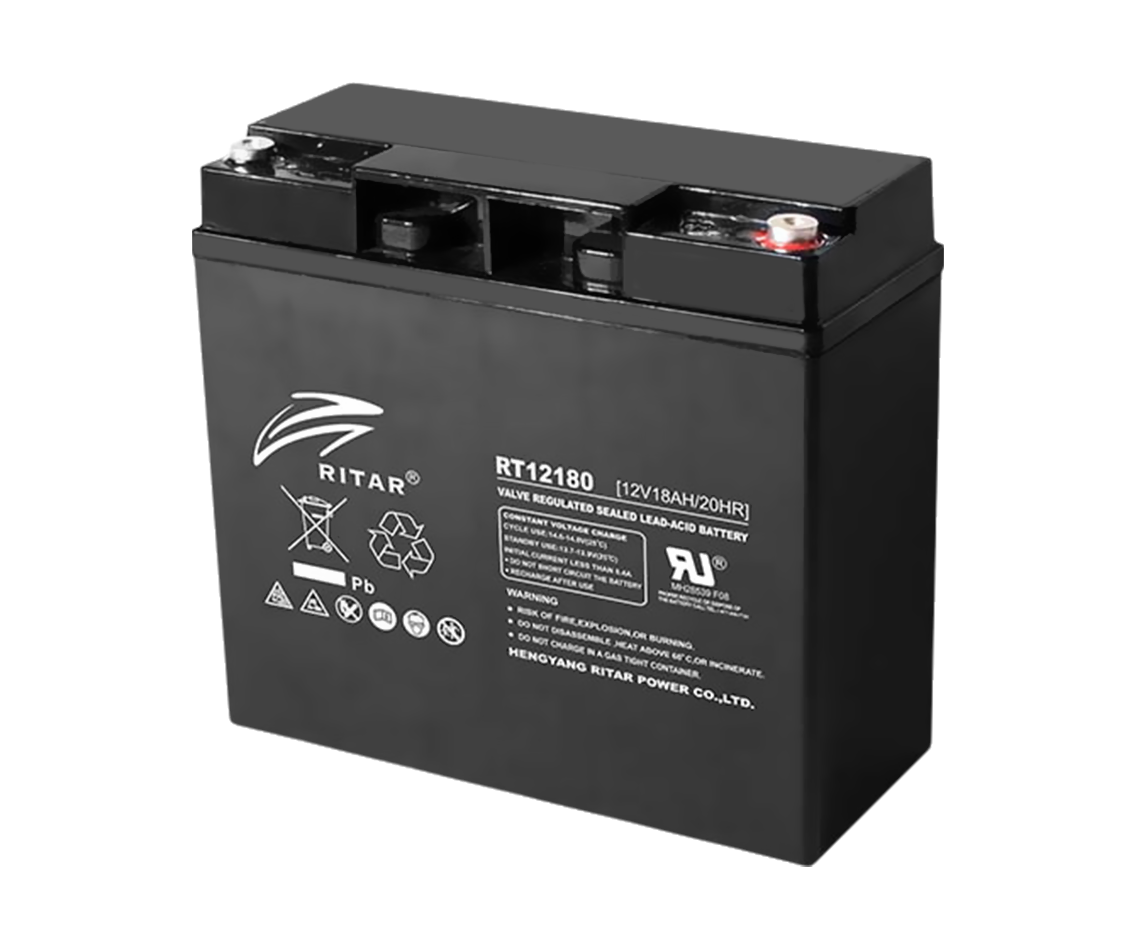

| RT12180 | 12 | 18 | 181 | 77 | 167 | 167 | F3(M5) / F13-BP(M5) | D |
| RT12200 | 12 | 20 | 181 | 77 | 167 | 167 | F3(M5) / F13-BP(M5) | D |
| RT12220 | 12 | 22 | 181 | 77 | 167 | 167 | F3(M5) / F13-BP(M5) | D |
| RT12240 | 12 | 24 | 166 | 176 | 125 | 125 | F3(M5) / F13-BP(M5) | D |

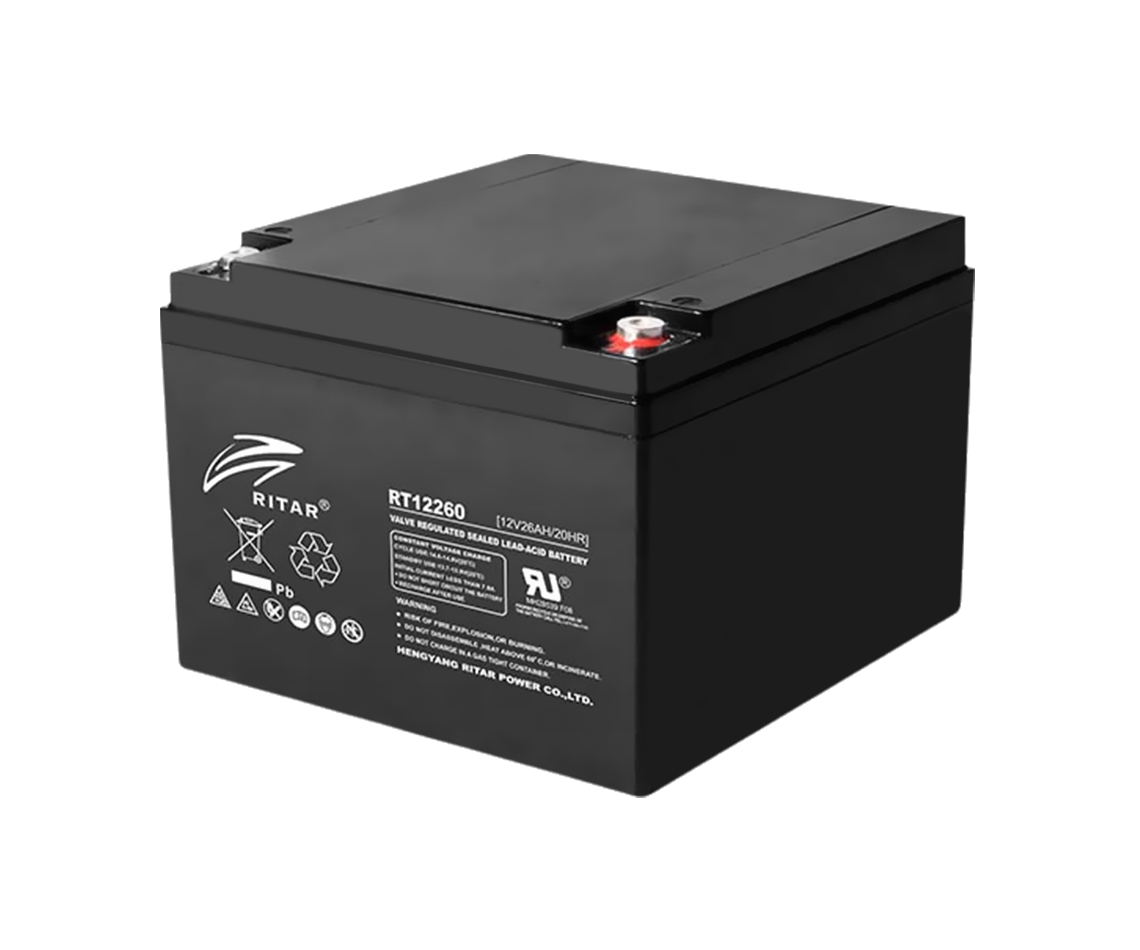

| RT12260 | 12 | 26 | 166 | 176 | 125 | 125 | F3(M5) / F13-BP(M5) | D |
| RT12240S | 12 | 24 | 165 | 125 | 174 | 174 | T28(M5) / F11(M6) | D |
| RT12280 | 12 | 28 | 166 | 176 | 125 | 125 | F3(M5) / F13-BP(M5)/T24(M5) | D |
| RT12260S | 12 | 26 | 165 | 125 | 174 | 174 | F7(M8) / F11(M6) | D |
| RT12280S | 12 | 28 | 165 | 125 | 174 | 174 | F7(M8) / F11(M6) | D |
